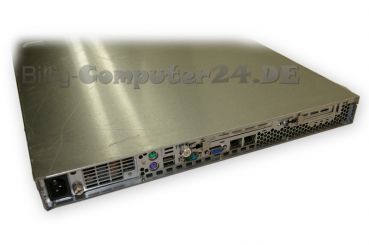

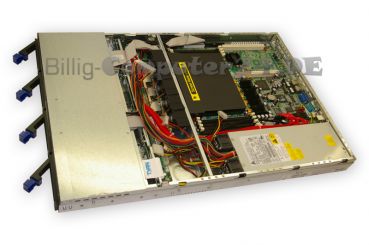

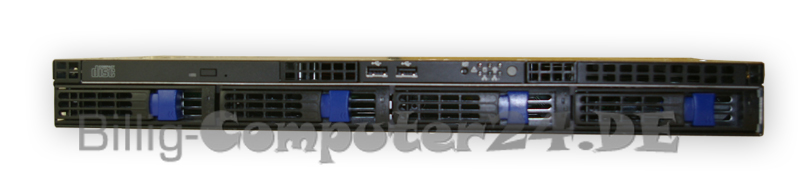

Tyan Transport GT24 B2881G24S4H Server BareBone Rack 1U AMD Opteron ohne festplatten ramen (Neu ohne Oryginal verpackung und Verkratzt).
Motherboard Features:
| Motherboard | - TYAN Thunder K8SRE (S2881G2NR-BB)
- Form Factor: E-ATX footprint (13" x 12")
|
| Processor | - Up to two AMD Opteron? 200 series processors
|
| Chipset | - AMD 8131 HyperTransport PCI-X Tunnel
- AMD 8111 HyperTransport I/O Hub
- Winbond W83627HF Super I/O chip
- ADT7463 Hardware monitor IC
|
| Memory | - Eight 184-pin 2.5V DDR DIMM sockets
- Supports up to 16GB reg. ECC DDR memory
- Support DDR 333/400 memory
- Support Single and Dual Rank memory
|
| Expansion | - Two 64-bit 133/100MHz (3.3V) PCI-X slot, supporting low profile and standard card
- Tyan TARO SO-DIMM connector for add-on storage controller card
|
| Integrated Storage Controller | - Model B2881G24S4-LC:
- Dual channel IDE
- Silicon Image SI3114 SATA RAID controller.
- Supporting RAID 0, 1 & 10 |
| Integrated PCI Graphics | - ATI® RAGE? XL PCI graphics controller
- 8MB Frame Buffer of video memory
|
| Networking | - (2) Gigabit Ethernet ports (Broadcom BCM5704 dual port controller) connected to 133MHz PCI-X bus
|
| Server Management | - Automatic fan speed control
- Chassis intrusion alert
- Support Tyan Server Management (TSM)
- TYAN SMDC, IMPI v1.5 compliant Remote server management kit (option)
|
| BIOS | - AMI BIOS 8.0 on 4Mbit LPC Flash ROM
- PnP, DMI2.0, WfM2.0 power management
- Power management S1, S4 and S5 support
- ACPI 1.0b & 2.0 support
|
Chassis Features:
| Enclosure | - Industry 19" rack-mountable 1U chassis
- Storage bays: (1) slim CD-ROM bay; (4) 3.5" HDD bays; (1) slim line FDD bay
- Dimensions (inch): 25.4"(D) x 17.2"(W) x 1.72"(H)
- Dimensions (mm): 645 (D) x 436 (W) x 43.6 (H)
|
| Power Supply | - EPS 12V, 1U, 500W with PFC
- 100V~240V AC input
|
| Front Panel Features | - I/O: (2) USB 2.0 ports
- Switch: Power; Reset
- LED indicators:
HDD active, Power, (2) LAN LEDs |
| Back I/O Ports | - Stacked PS/2 Mouse & Keyboard ports
- (2) USB 2.0 ports
- (1) 9-pin UART Serial port
- (1) 15-pin VGA port
- (2) RJ-45 10/100/1000 Base-T LAN ports
|
| Storage | - B2881G24S4-LC: support (4) internal SATA HDDs
- B2881G24S4H: support (4) hot-swap SATA HDDs
- Slim line CD-ROM, DVD-ROM, and FDD (option)
|
| Environment Temperature | - Operating temperature 5°C ~ 35°C
|
| Regulatory | - FCC Class B (Declaration of Conformity)
- CE (Declaration of Conformity)
|
